Tired of your machine making that awful squealing noise every time you start it up? Or maybe your belts keep slipping, burning out faster than they should, costing you time and money. Did you know that nearly 9 out of 10 belt failures come from wrong tension? It’s frustrating, right? That annoying screech, the wasted power, and the constant need to replace parts can drive anyone crazy. But what if you could fix it all with just a few simple tricks? You don’t need to be an engineer to get perfect tension.
This article is your complete guide to mastering v belt tensioning methods so you can say goodbye to those headaches forever. We’ll start by explaining What Is V Belt Tensioning and Why It Matters, then we’ll break down the 3 Main V Belt Tensioning Methods that actually work. You’ll even learn a super simple, step-by-step plan for How to Use the Force-Deflection Method Step by Step, and we’ll show you how to use a cool tool for How to Use a Belt Frequency Meter. Get ready—you’re about to become the tensioning expert in your shop, and it’s going to feel amazing!

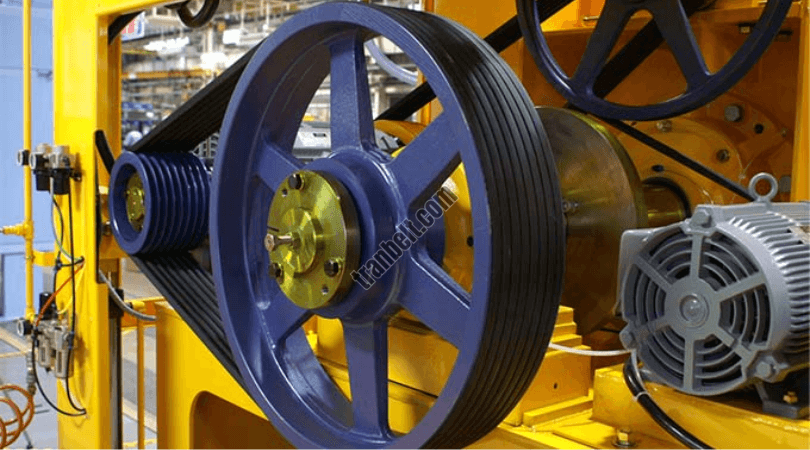

What Is V Belt Tensioning and Why It Matters
V belt tensioning is about making sure your V belt is tight just right – not too loose and not too tight. Think of it like a rubber band on a toy car; if it’s too loose, it won’t move the wheels, and if it’s stretched too much, it might snap. For machines that use V belts, having the right tension is super important. It stops the belt from slipping and wearing out fast, and it also protects other parts of the machine from getting damaged. When the tension is correct, your equipment runs smoother, works better, and lasts longer, saving you money and trouble in the long run.
3 Main V Belt Tensioning Methods
There are a few main ways to make sure your V belts are tight enough. Getting the right tension is very important for your machines to work well and for the belts to last a long time. Too loose, and they slip; too tight, and they can break or hurt the machine. We’ll look at the three most common methods to get it just right.
Force-Deflection Method
This method is pretty simple and often used. You push down on the middle of the belt with a certain amount of force, and then you measure how much the belt bends or “deflects.” You compare this bend to a chart or a number given by the belt maker. If the bend is within the right range for the force you used, the belt has the correct tension.
Belt Frequency Meter Method
This method uses a special tool that’s easy to use. The tool listens to how fast the belt vibrates or “sings” when you tap it. Every belt has a “correct” sound or vibration speed when it’s tensioned just right. The meter reads this vibration and tells you if the belt is too loose, too tight, or just right. It’s a very accurate way to set tension.
Elongation Method
The elongation method is usually for new belts. It involves stretching the belt by a certain amount from its original length when you install it. You measure the belt’s length before putting it on, then you tighten it until it has stretched by the small, correct percentage provided by the manufacturer. This stretch means it has the right tension.
How to Use the Force-Deflection Method Step by Step
The force-deflection method is a simple way to make sure your V belt has the right amount of tightness. You push down on the belt with a special tool and measure how much it bends. Then, you compare this number to what the belt’s maker says is correct. This helps you keep your belt from being too loose, which can make it slip, or too tight, which can wear out your parts too fast.
Tools You Will Need
To use this method, you’ll need a few basic tools. The most important one is a belt tension tester or a force gauge, which is a tool that measures how much force you are pushing with. You will also need a regular tape measure or ruler to check the length of the belt. Sometimes, a marker can be handy to mark spots.
How to Measure Span Length
The span length is simply the open, unsupported part of the belt between two pulleys. To measure it, find the center point of one pulley and the center point of the next pulley. Then, use your tape measure to find the straight distance between these two center points. Make sure you are only measuring the part of the belt that isn’t touching a pulley.
How to Read the Tension Chart
A tension chart tells you how much force to use for your specific belt. First, find the type and size of your V belt on the chart. Next, look for the span length you just measured. The chart will then show you the correct amount of force to apply with your tension tester, and how much the belt should bend or deflect when that force is used. This helps you get the belt tension just right.
How to Use a Belt Frequency Meter
A belt frequency meter is a smart tool that helps you set the right tension for your V-belts. It’s like a special microphone that listens to the belt’s vibration. By making sure the belt vibrates at the correct speed, you can be sure it has the perfect tightness. This helps your machines work better and makes your belts last longer.
How the Meter Works
This meter listens to the sound your belt makes when you pluck it, kind of like a guitar string. Every belt has a natural “singing” note depending on how tight it is. The meter measures this note, or frequency, and then tells you if the belt is too loose, too tight, or just right. It’s a very accurate way to check belt tension using sound waves.
Step-by-Step Instructions
First, make sure your machine is turned off and safe. Get the right frequency number for your belt from the belt maker’s guide or a chart. Then, turn on your meter. Hold the meter close to the middle of the longest free part of the belt. Gently pluck or tap the belt to make it vibrate. The meter will show you a number. Compare this number to the one you need. Adjust the belt’s tightness until the meter shows the correct frequency.
When to Choose This Method Over Others
You should pick a belt frequency meter when you need the most accurate belt tension possible. It’s great for new belts, complex machines, or when you want to avoid guessing. It’s usually faster and more reliable than trying to push on the belt by hand or just looking at it. This method helps prevent problems like belts slipping or wearing out too fast because of wrong tension.
How Does TranBelt Supply Industrial Belts and Kits from China?
When it comes to sourcing Industrial Belts and Kits from China, we know that reliability, quality, and cost-efficiency are non-negotiable. At TranBelt, we don’t just ship products—we deliver complete drive solutions that keep your operations running smoothly. Here’s exactly how we make the process seamless for you:
-
We work directly with top global belt brands and are their official distributor in China. This allows us to offer lower agent prices on original belts from brands like Bando, Continental, Gates, Megadyne, Mitsuboshi, and Optibelt—all with stable stock and fast supply.
-
We also have our own factory, giving us the ability to produce belts for different machines and special needs. Factory production means better quality control and more competitive prices, including custom belts tailored to your exact specifications.
-
We cooperate with long-term shipping partners, offering both air and sea shipping. We help you choose the best shipping plan to save cost and receive goods safely and on time.
Looking for a reliable belt supplier in China?
Contact TranBelt now for a fast quotation and professional support.
Frequently Asked Questions
How tight should a V belt be?
A V belt needs to be tight enough so it doesn’t slip, but not so tight that it hurts the motor or the pump bearings. A good rule is to push down on the belt halfway between the two pulleys. You should be able to push it down about half an inch for every foot of distance between the pulleys. If it goes down too easy, it’s too loose. If it feels like a guitar string, it’s way too tight.
How often should I check V belt tension?
You should check the belt tension after the first 8 to 24 hours of run time, because a new belt will stretch a little at first. After that, check it every month or so. If you run the machine every day or in a dirty, hot place, check it more often. Just make it part of your regular maintenance routine, like checking the oil.
Can I tension a V belt by hand feel alone?
No, you shouldn’t just use your hand feel. What feels “tight enough” to you might be too loose or way too tight for the machine. People guess wrong all the time. A belt that feels tight can still slip under load, and a belt that feels just right could be ruining your bearings. Use a proper tension tester or gauge to get it right.
What tools do I need to tension a V belt?
You don’t need fancy tools, but you do need the right ones. A simple belt tension gauge (like a spring-loaded tester) works great for most jobs. You can also use a straight ruler and a spring scale to measure how much force it takes to push the belt down. For a quick check, some people use a smartphone app that measures the belt’s vibration frequency. Stay away from just guessing.
Why does my new V belt lose tension so fast?
New belts lose tension fast because they “seat in.” The belt fibers stretch a little and the belt settles into the pulley grooves. This is totally normal. That’s why you have to re-tension a new belt after the first few hours of use. If a belt keeps losing tension after that, you might have a bad belt, worn pulleys, or the pulleys are out of line with each other.
What happens if a V belt is too loose?
A loose belt will slip, and that causes big problems. It makes the machine run slow or not work right. The slipping creates lots of heat, which chews up the belt fast and can even melt it. You’ll also hear a squealing noise. Over time, the slipping can burn up the motor or ruin the pulleys. Fix it as soon as you see or hear slipping.
Is the force-deflection method or frequency meter method better?
For most regular folks, the force-deflection method is easier and good enough. You just push on the belt with a gauge and measure how far it moves. No fancy equipment needed. The frequency method (using a meter or phone app) is more accurate, but it takes some practice. If you are working on a critical machine, go with the frequency meter. For a lawn mower or a shop fan, the force-deflection method works just fine.
Conclusion
So now you know all about v belt tensioning methods and why they matter so much. You’ve seen how loose belts slip and waste power, and how tight belts wear out parts fast. The three main ways to tension a belt—force-deflection, belt frequency meter, and feel—are all simple to learn. The step-by-step guide for the force-deflection method is easy to follow, and using a belt frequency meter takes the guesswork out. Your biggest problems with belt tension are solved. You no longer have to wonder if your belt is too loose or too tight. Now you have the tools to get it right every time.
