Do you ever feel like your conveyor belt has a mind of its own, constantly drifting to one side and causing frustrating shutdowns? It’s a common pain point in factories and warehouses, leading to costly repairs, wasted product, and even dangerous accidents. According to industry stats, misaligned belts cause over 60% of unscheduled downtime. But don’t worry—mastering how to track a conveyor belt doesn’t have to be a headache! We’re here to fix that frustration once and for all.
In this full guide, we’ll break down everything you need to know in simple, easy-to-follow steps. First, we’ll cover the common causes of belt misalignment, so you can spot problems fast. Then, we’ll walk through how to track a conveyor belt: step-by-step, with no technical jargon. Finally, you’ll learn belt tracking rules you must know to keep your system running smoothly. Get ready to take control with confidence—let’s dive in!
How to Track a Conveyor Belt in 2026? A Full Guide
Tracking a conveyor belt means making sure it runs perfectly straight and centered on its path. It’s like keeping a car in its lane on the highway. If a belt starts to drift off to one side, it can cause big problems. In 2026, with companies needing things to move fast and without mistakes, knowing how to properly track a conveyor belt is super important to keep everything running smoothly and avoid expensive fixes.
What Is Conveyor Belt Tracking?
Conveyor belt tracking is the process of adjusting the rollers and framework so the belt stays in the middle of the conveyor system. When a belt is tracked correctly, it moves in a straight line, carries materials without touching the sides, and works as it should. If it’s not tracked right, the belt can rub against the frame, move crooked, or even fall off, leading to spills and damage.
Why Proper Belt Tracking Matters in 2026
Getting your conveyor belt tracking right is a big deal because it saves you time and money. A belt that’s not running straight can wear out quickly, cause materials to spill everywhere, and even break parts of the machine. In 2026, when businesses want everything to be extra efficient, proper tracking means your machines work longer, need fewer repairs, and you don’t have to stop work because of problems. It helps keep your business moving forward without unexpected pauses.
Common Causes of Belt Misalignment
Conveyor belts often start to run off to one side, which we call misalignment. This can cause the belt to rub against the frame, damage itself, and even stop your work. There are a few main reasons why a belt might not stay in its proper path. Understanding these common issues helps you figure out how to get your belt running straight again and keep your operations smooth.
Dirty or Worn Rollers and Pulleys
The rollers and pulleys are like the wheels that guide the belt along its path. If these parts get covered in dirt, dust, or bits of material, they can become lumpy or sticky and won’t turn smoothly. Also, if they wear out over time and aren’t perfectly round anymore, the belt will not run evenly over them. This unevenness makes the belt want to drift off to one side instead of staying in the middle.
Uneven Belt Tension
Think of pulling a rope with one hand much harder than the other; the rope won’t go straight. It’s similar with a conveyor belt. If the belt is tighter on one side than the other, it creates an uneven pull. This means one side of the belt is being stretched more than the other, which will cause the belt to pull towards the tighter side and move off its correct path. The belt needs to be equally tight across its entire width to run straight.
Off-Center Loading
When you put materials onto the conveyor belt, it’s really important that they drop right in the middle. If too much material is loaded onto one side of the belt, that side becomes heavier and pushes down more. This uneven weight can make the belt want to move towards the side with more material. The belt will then start to wander off its central line, causing it to misalign.
Damaged or Twisted Frame
The frame is the main structure that holds all the conveyor belt parts in place. If this frame gets bent, broken, or twisted because of an impact or wear and tear, then the rollers and pulleys that sit on it won’t be lined up correctly anymore. When the guiding parts are out of line, the belt has no choice but to follow the crooked path they create, leading it to run off center.
How to Track a Conveyor Belt: Step-by-Step
Keeping your conveyor belt running straight is really important to avoid problems and keep your work moving. If the belt starts to drift to one side, it can cause damage or even stop everything. This guide will walk you through the simple steps to make sure your conveyor belt stays on track and works right.
Step 1 – Inspect the Entire Conveyor System
First, you need to take a good look at the whole conveyor belt system. Walk along it and check for anything that looks broken, worn out, or has too much dirt or material built up. Look for any parts that seem loose or out of place, especially on the rollers and frames. Sometimes, finding a simple problem here can fix why the belt is running off.
Step 2 – Adjust the Belt Tension Evenly
The belt needs to be pulled tight enough, but it’s super important that it’s pulled evenly on both sides. If one side is tighter or looser than the other, the belt will naturally try to move towards the looser side. Make sure the tensioning system, often at the tail end, is adjusted so that the belt feels just as tight across its whole width.
Step 3 – Align Pulleys and Idlers
The round wheels (pulleys) at the ends and the smaller rollers (idlers) that support the belt along its path must all be lined up perfectly straight. If any of these are tilted even a little bit, they will push the belt off course. Take your time to check each one and adjust them carefully until they are all even and flat with the belt’s path.
Step 4 – Use Tracking Devices
For some belts, special tools called tracking devices can be used. These smart parts are designed to watch the belt as it moves and automatically make small adjustments to keep it centered. They work by gently guiding the belt back to the middle if it starts to drift, making it easier to keep a straight line without constant manual fixes.
Step 5 – Run a Test and Observe
After you’ve made any adjustments, it’s time to test it out. Start the conveyor belt slowly at first. Watch it very closely to see if it’s now running straight down the middle. If it’s still moving off to one side, stop the belt and make more small adjustments to the problem areas. Keep testing and fine-tuning until the belt runs perfectly straight.
Belt Tracking Rules You Must Know
When you work with conveyor belts, it’s super important to know some basic rules. These rules help you keep the belt running straight and stop it from getting damaged or making a mess. Following them makes your job easier and safer, and helps your conveyor system last longer without big problems.
Rule 1 – The Belt Follows the Roller It Contacts First
This first rule is really simple to get. The part of the conveyor belt that touches a roller first will decide which way that part of the belt moves. So, if the front edge of the belt hits a roller more on one side, that side of the belt will try to move in that direction. This means you need to watch where the belt first touches the rollers to understand why it’s moving off center.
Rule 2 – Square Everything to the Belt Path
The second rule means everything on the conveyor system should be straight and even with the path the belt takes. Imagine the belt running in a straight line. All the rollers, idlers, and other parts should be lined up perfectly at 90 degrees to that line. If things are not square, the belt will try to walk off to one side, no matter how much you try to adjust it.
Rule 3 – Adjust One Side at a Time
For the third rule, when you’re trying to fix a belt that’s not running straight, only adjust one side of a roller or idler at a time. If you try to change both sides at once, it’s easy to over-adjust or make things worse. Make a small change on one side, then watch what the belt does. Give it some time to react, and then decide if you need to make another small change or move to the other side.
How Does TranBelt Supply Conveyor Belts and Kits from China?
When you need conveyor belts and kits sourced from China, we at TranBelt make the entire process smooth, cost-effective, and reliable. Our supply chain is built on three core advantages that directly benefit you: direct brand partnerships, in-house manufacturing, and optimized logistics.

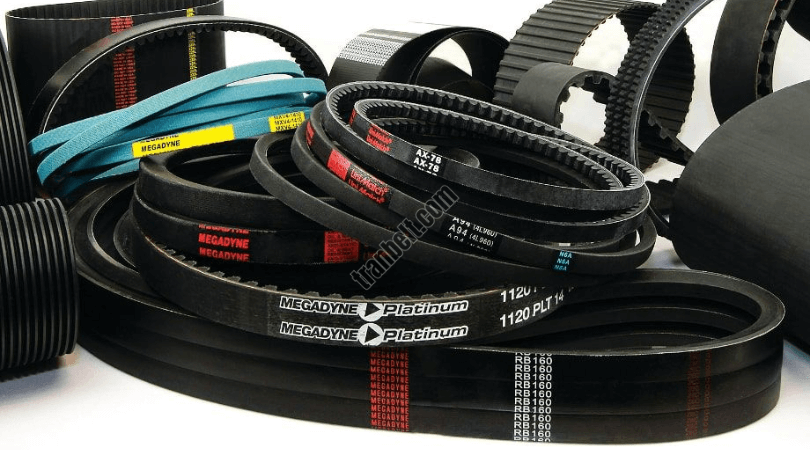

- We work directly with top global belt brands like Bando, Continental, Gates, Megadyne, Mitsuboshi, and Optibelt as their official distributor in China. This means we offer lower agent prices and maintain stable stock for fast supply.
- We also own our factory, enabling us to produce custom conveyor belts and kits for different machines and special requirements. Factory production gives us better quality control and more competitive pricing—especially for custom orders.
- We cooperate with long-term shipping partners for both air and sea freight. We help you choose the best shipping plan to save costs while ensuring your goods arrive safely and on time.
Looking for a reliable belt supplier in China?
Contact TranBelt now for a fast quotation and professional support.
Frequently Asked Questions
1. What does “tracking a conveyor belt” mean?
Tracking a conveyor belt means making sure the belt stays centered on the rollers and pulleys as it moves. When a belt is tracking right, it runs straight and doesn’t rub against the frame or drift off to the side. Think of it like keeping your car driving straight in its lane.
2. How often should I check belt tracking?
You should check the belt tracking every day before you start work, and again after the belt has been running for about 30 minutes. Also check it any time you load heavy items, change the belt, or adjust the rollers. Regular checks help catch problems early before they cause damage.
3. What causes a conveyor belt to keep drifting to one side?
The most common reasons are uneven loading (putting heavy stuff on one side), dirty or worn rollers, loose pulley bearings, or a buildup of material under the belt. Also, if the belt got wet or stretched unevenly, it will pull to one side. Check for anything that makes the belt push harder on one edge than the other.
4. Can I track a belt while it’s running?
Yes, you can make small adjustments while the belt is running, but you have to be very careful. Keep your hands, tools, and loose clothes away from the moving parts. Only make tiny turns on the adjustment bolts—maybe just a quarter turn at a time. Wait a minute after each adjustment to see if the belt moves back to center.
5. What is a crowned pulley and how does it help?
A crowned pulley is a roller that is slightly fatter in the middle and thinner at the edges. When the belt runs over it, the belt automatically slides toward the center. It’s a simple way to help keep the belt tracking straight without having to adjust anything. Most good conveyor systems use crowned pulleys at the head and tail ends.
6. When should I replace the belt instead of tracking it?
Replace the belt when it’s frayed at the edges, has cracks or cuts, or if the belt material is worn paper-thin. Also replace it if you’ve tried adjusting the tracking many times and nothing works, or if the belt is stretched out unevenly. A belt that keeps breaking or slipping even after tracking is a sign it’s time for a new one.
7. Do I need special tools to track a conveyor belt?
No, you usually just need basic tools like a wrench or a socket set to turn the adjustment bolts on the rollers. Sometimes you might need a screwdriver or a rubber mallet to tap things into place. Most conveyor belts have simple bolts or nuts on the ends of the rollers for making tracking adjustments.
Conclusion
You’ve just learned everything you need to know about how to track a conveyor belt in 2026. We covered the common causes of belt misalignment, walked through the step-by-step tracking process, and gave you the key rules to keep your belt running straight. Now, those frustrating pain points—like belt damage, downtime, and lost work—have been solved. You no longer have to guess or struggle. You have the knowledge to fix tracking issues yourself, and that should feel exciting! Your conveyor belt problems are behind you.
