Are you tired of buying a V-belt that just won’t fit? You grab one off the shelf, install it, and it’s either too tight or slipping off. Frustrating, right? A worn belt can wreck your machine, cost you time, and leave you stuck mid-job. Most people struggle because they guess the size. But here’s the good news: once you learn how to measure a v belt the right way, you’ll never waste money on the wrong part again. Excited yet? Let’s fix this problem once and for all!
Second Paragraph:
This article is your simple, step-by-step guide to get it right. First, I’ll break down How to Measure a V-Belt: What You Need to Know so you understand the basics. Then, I’ll list Tools You Need Before You Start—stuff you probably already have at home. Next, we’ll dive into How to Measure V-Belt Length with a super easy trick. Finally, you’ll master How to Measure V-Belt Width and Height to ensure a perfect match. By the end, you’ll measure like a pro and save money on returns. Let’s get measuring!
How to Measure a V-Belt: What You Need to Know
Getting the right size V-belt is super important for your machines to work well. If the belt is too big or too small, it can cause problems, make your machine wear out faster, or even break your equipment. Knowing how to measure it correctly means your machine will run smoothly and stay in good shape for a long time. It’s a simple skill that saves you time and money in the long run.
What Is a V-Belt and Why Measurement Matters

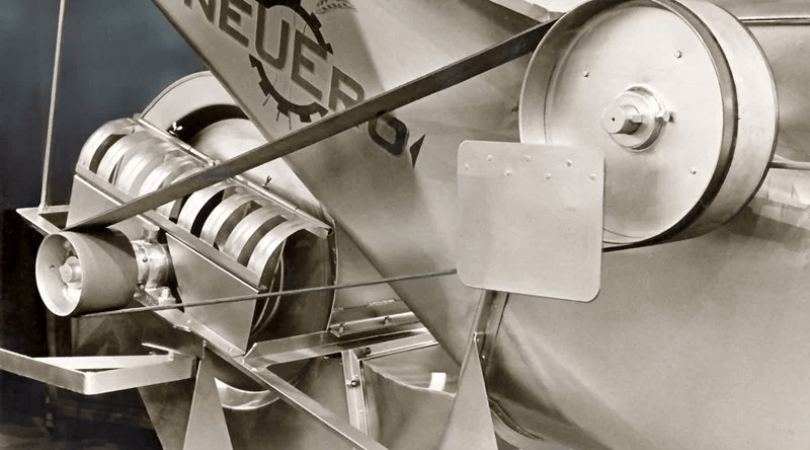

A V-belt is a special kind of belt, shaped like a ‘V’ on its sides, that helps parts of a machine move together. It connects wheels called pulleys to make things spin or turn. Measuring a V-belt correctly is vital because if it’s too loose, it will slip and not work, and if it’s too tight, it can damage the machine’s parts. The right fit makes sure your machine runs safely and efficiently.
Inner vs. Outer Circumference Explained
When you measure a V-belt, you’ll hear about the “inner” and “outer” circumference, which just means length. The inner circumference is the length around the inside edge of the belt, where it would touch the bottom of the pulley groove. The outer circumference is the length around the very outside edge of the belt. These two lengths are a little different because of the belt’s thickness. Knowing which one your machine needs is key for a perfect fit.
V-Belt Types: A, B, C, D, and More
V-belts don’t just come in different lengths; they also come in different widths and thicknesses, which means they fit into different sized grooves on your machine’s pulleys. These different sizes are often called by letters like A, B, C, D, or even numbers. For example, an ‘A’ belt is thinner than a ‘B’ belt. Knowing the specific type of V-belt, like whether it’s an ‘A’ type or a ‘B’ type, is just as important as knowing its length to make sure it fits correctly and works right in your equipment.
Tools You Need Before You Start
Before you start measuring your V-belt, it’s a good idea to get all your tools ready. Having the right tools makes the job much easier and helps you get the correct size every time. Don’t worry, you probably have most of these lying around your house or garage.
Flexible Tape Measure
A flexible tape measure is super important for measuring the length of your V-belt. Since V-belts are curved, a tape that can bend easily around them will give you the most accurate reading. This tool is perfect for finding out how long the belt is all the way around its outside edge.
Calipers or a Hard Ruler
You’ll need calipers or a hard ruler to measure the width and thickness of the V-belt. These tools help you get a very clear number for how wide the belt is across its top and how deep it is from top to bottom. This is a key step to make sure any new belt you get will fit perfectly.
String (For Belts Still on a Pulley)
If your V-belt is still on a machine and it’s hard to take off, a piece of string or thin rope can really help. You can wrap the string tightly around the belt, following its path, then mark where the string overlaps. After that, just take the string off and measure its length with your tape measure to find the belt’s total length.
How to Measure V-Belt Length
Getting the right V-belt length is super important for your machine to work right. If it’s too long, it will slip. If it’s too short, it won’t fit or it will break too fast. You can measure a V-belt even if it’s old or broken, or when you buy a new one. We’ll show you how to find its exact length so your equipment runs smoothly.
Step 1: Mark a Starting Point on the Belt
First, find a spot on the V-belt and make a small mark with a pen, chalk, or marker. This mark will be your starting and ending point when you measure. It helps you keep track of where you began so you don’t measure the same part twice. This makes sure you get an accurate measurement.
Step 2: Roll or Wrap the Belt to Get Outer Circumference
Next, lay the V-belt flat on the ground or a table. Use a flexible tape measure and start at your mark. Carefully wrap the tape measure all the way around the outside edge of the belt until you reach your mark again. Write down this number. If your belt is open, you can just lay it straight and measure it from end to end.
Step 3: Subtract the Deduction Constant to Get Inner Length
The number you just got is the outer length of the belt. But most V-belts are measured by their inside length. To get the inside length, you need to subtract a special number. This number is often called the “deduction constant” and it’s usually around 2 inches or 5 centimeters for standard V-belts. So, take your outer measurement and subtract about 2 inches to find the actual inside length you need.
How to Measure V-Belt Width and Height
Finding the right V-belt means you need to know its exact size. You will measure two key parts: how wide the belt is across the top and how tall it is from bottom to top. These measurements are important to make sure your new belt fits perfectly and works well with your machine.
Measuring the Top Width
To measure the top width of your V-belt, first make sure the belt is clean. Then, use a ruler or a tool called a caliper. Place the belt on a flat surface. Carefully measure straight across the widest part of the belt’s top side. Write this number down so you don’t forget it.
Measuring the Belt Depth (Height)
Next, you need to find the belt’s depth, also known as its height. Keep the belt on that flat surface. Use your ruler to measure from the very bottom of the belt all the way up to the very top. This will tell you how tall the V-belt is. Write this measurement down too.
Using a Belt Profile Chart to Confirm Your Size
After you have your width and height numbers, look at a belt profile chart. These charts show standard sizes for V-belts. You can compare your measurements to the sizes on the chart. Find the size on the chart that is the closest match to what you measured. This helps you pick the right standard belt that will fit your machine well.
How Does TranBelt Supply V-Belts and Kits from China?
When you need V-Belts and Kits from China, you deserve a supply chain that is reliable, cost-effective, and hassle-free. We at TranBelt make this happen by combining global brand partnerships, in-house manufacturing, and optimized logistics. We don’t just ship products—we deliver good products, good prices, and easy service every step of the way.
- We work directly with top global belt brands as their official distributor in China. This means we can offer you lower agent prices on original belts from brands like Bando, Continental, Gates, Megadyne, Mitsuboshi, and Optibelt—all with stable stock and fast supply.
- We also operate our own factory, so we can produce V-belts for different machines and special requirements. Factory production gives us better quality control and more competitive prices, including custom belts tailored to your exact specs.
- We cooperate with long-term shipping partners for both air and sea freight. We help you choose the best shipping plan to save costs while ensuring your goods arrive safely and on time.
Looking for a reliable belt supplier in China?
Contact TranBelt now for a fast quotation and professional support.
Frequently Asked Questions
1. What is the easiest way to measure a v-belt at home?
The easiest way is to take a piece of string, wrap it tight around the outside of the belt, and mark where it meets. Then lay the string flat and measure it with a tape measure. That gives you the outside length. Or, if you have the old belt, just lay it flat and measure it from end to end.
2. What does the number on a v-belt mean?
The number on a v-belt usually tells you the belt’s size and length. For example, a belt marked “A34” means it’s an “A” type belt (which has a top width of about 1/2 inch) and its inside length is 34 inches. The letter tells the width, and the number tells the length.
3. How do I know if my v-belt is A or B type?
Check the top width of the belt. An “A” type belt measures about 1/2 inch wide. A “B” type belt is a little thicker and measures about 21/32 inch wide (just a bit more than 5/8 inch). Also, look at the side of the belt for a stamp that says “A” or “B”.
4. Can I measure a v-belt that is still on the machine?
Yes, but it takes some care. Use a string to go around the belt while it’s still on the pulleys. Or, you can use a flexible tape measure around the outside of the belt. Make sure the belt is tight, not loose. Then use that measurement to find the right replacement size.
5. What tools do I need to measure a v-belt?
All you need is a piece of string or a soft cloth tape measure. A ruler or a stiff tape measure can also work if you lay the belt flat. No special tools are needed. Some people use a belt measuring tool, but it’s not a must.
6. What happens if I get the wrong size v-belt?
If the belt is too long, it will slip and not grip the pulleys right. If it’s too short, you might not be able to get it on the pulleys at all. The machine might make noise, wear out faster, or stop working. Getting the right size is key for good performance.
7. Where can I find a v-belt size chart?
You can find v-belt size charts online, like on auto parts or hardware store websites. Many stores that sell belts also have printed charts. Just search “v-belt size chart” with your belt number, and you’ll see a list of measurements and cross-references.
Conclusion
By now, you have learned exactly what you need to know about how to measure a v belt. All those pain points—like guessing the wrong size or using the wrong tools—are gone. You can now measure the length, width, and height of any V-belt with simple steps. Most of your problems are solved, and you can finally replace belts the right way. No more frustration or wasted time. You are now ready to tackle this job with confidence and get your machine running again.
